Water Wash Spray Booth (2000mm)

Water Wash Spray Booth (2000mm)

Manufacturer:
Hi-Tec
Product ID:
WWB200
Internal Width:
2000 mm
Brochure:
Please See Brochure
spacer
£11,830.00 (£9,858.33 ex VAT)

spacer

Add-ons

spacer

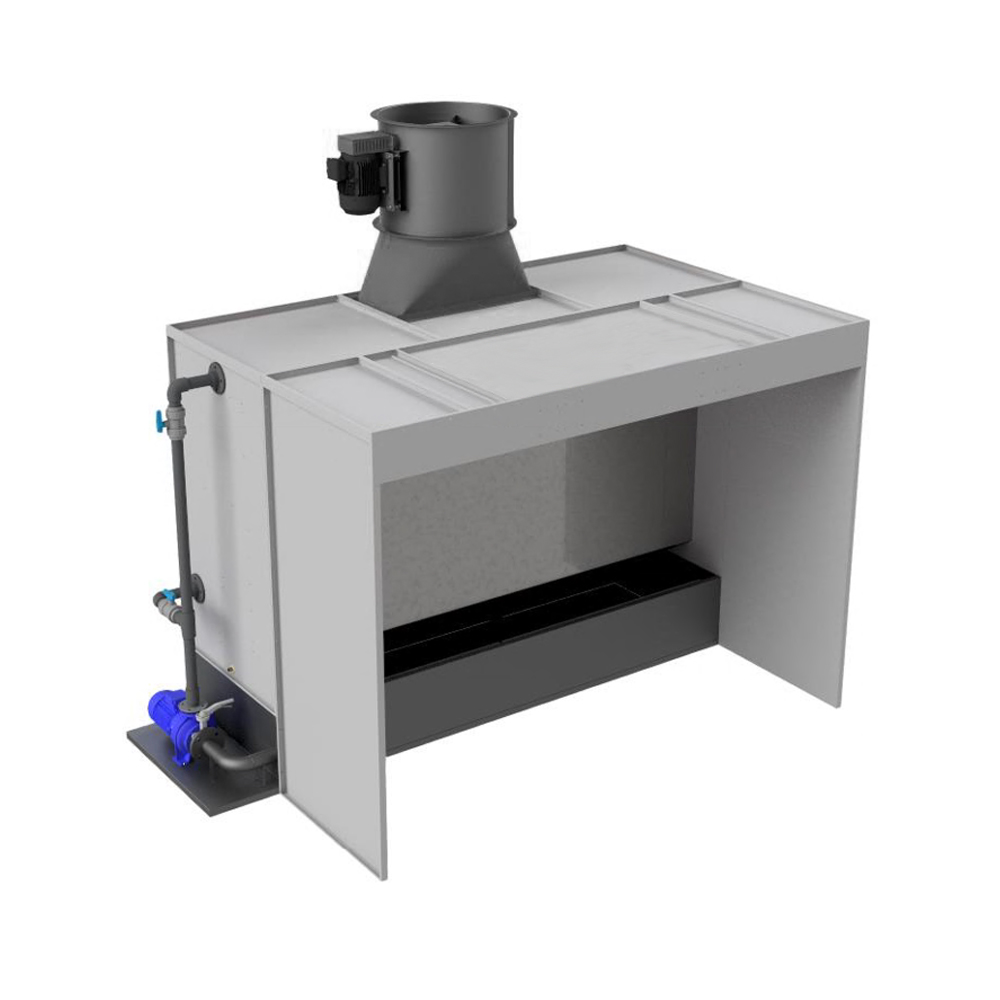

Water Wash Spraybooth

When a Dry Filter Spray Booth is not suitable because of the nature of the materials to be applied, or due to the requirement to improve the efficiency of the extraction system, our Water Wash Spray Booths provide the perfect solution, utilising the latest nozzle and weir technology to meet improved extraction criteria.

The Hi-Tec Water Wash Spray Booth is designed to provide increased overspray capture by means of its unique high pressure scrubbing action and delivers the perfect solution to these improved extraction requirements.

All our Water Wash Spray Booths are supplied as standard with a 1,000 mm working depth, 2,250 mm working height, fan, fan starter, pump and pump starter.

Standard Water Wash booths are of the pump and nozzle type, with flooded rear curtain (304 grade stainless steel) and have hard faced mechanical pump seals as standard.

The standard fan is suitable for a vertical run of ducting with no more than one 90° bend. If more than one 90° bend is necessary then the fan may require up-rating.

All spraybooths will require ducting to atmosphere, for further information and a quotation please contact us.

All spraybooths will arrive 'flat packed' and will require assembly. If you choose to purchase ducting this will need to be cut, fitted and sealed to suit your application. The straight spiral ducting is supplied in 3m lengths. One length of 3m spiral ducting is included in all the ducting options with the exception of Option 9, additional lengths and couplers are available on request. If the ducting is not purchased all booths will come with a spigot flange adapter to enable you to fit standard ducting at the size detailed in the product specification

The Theory

Overspray is drawn through the water curtain and into the wash plenum where it is scrubbed. This scrubbing action is created by means of high pressure nozzles. The air then passes through a series of baffles to remove the excess water and is then expelled into the atmosphere.

Key features and benefits

  • The belt driven axial fan is fitted on top of the extract plenum, featuring external motors and integral hatches.
  • Option of flameproof motors.
  • Supplied with push button starter(s) for fan(s) and pump.
  • Isolation valves on both sides of pump.
  • Galvanised and powder coated main tank section.
  • 304 Stainless Steel flood sheets.
  • Simple, low cost maintenance.
  • Supplied in kit form for assembly on site.
  • Full on site install service available.
  • Complies with current health and safety legislation.
  • Low-cost means of providing a safe environment.
  • Increased quality of finished work. Makes working conditions healthier and more pleasant for operatives.
  • Eliminates extra cleaning, previously caused by overspray.

Ducting

The Environmental Protection Act states that extract ductwork from a spraybooth should discharge in a vertical direction and goes on to say "In order to ensure dispersion is not impaired by either low exit velocity at the point of discharge, or deflection of the discharge, a cap, or other restriction, should not be used at the stack exit".

We would, therefore not recommend a horizontal discharge, however it can be supplied on the understanding that you (the client) take full responsibility for this choice and have carried out your own risk assessments.

Specifications:

Internal Width:2500 mm
Extraction Rate:The fan is specified to work on a minimum average of 0.7 m/s at the filter face and based on the assumption that the final duct run would not exceed 18 mm WG once the booth is running.
Ducting Diameter:630 mm
Number of Fans:1
Fan Type:Belt Driven Axial
Motor Size:2.2 kW
Voltage:400v 3 phase
