THE ULTIMATE HIGH-PRESSURE ELECTRIC AIRLESS SPRAYER

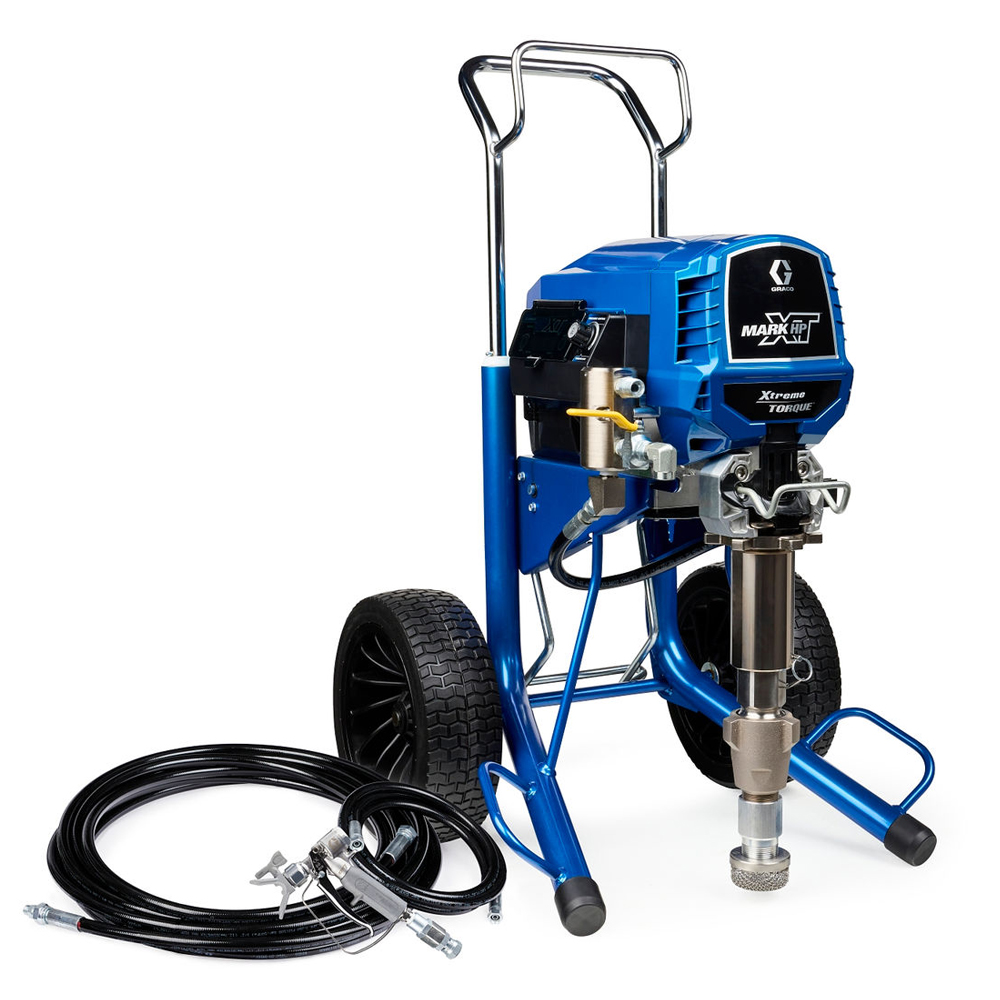

The Mark HP XT Standard Electric Airless Sprayer delivers breakthrough high-pressure performance for the most demanding protective coating applications. Powered by Graco's XT Motor with Amplifi™ Technology, it produces gas-level performance from a standard electric outlet while remaining quieter, lighter, and easier to operate. The UK Complete model (Part No. 18H415) is engineered for contractors spraying high-build protective coatings including epoxy, silicone, vapour barriers, polyurethane, and 100% solids materials.
Designed specifically for high-pressure coating applications, the Mark HP XT delivers up to 6,750 psi (465 bar) of spraying pressure and a maximum flow rate of 5.7 L/min. Combining exceptional power with Graco's proven reliability, it offers faster production, reduced downtime, and the versatility to tackle the toughest industrial and commercial coating projects without the need for a petrol-powered sprayer.
XT Motor with Amplifi™ Technology
- Delivers gas-level performance from a standard electric outlet.
- Up to 50% more power for demanding protective coatings.
- High-torque motor engineered for maximum productivity.
- Quiet electric operation ideal for indoor and extended-hour applications.
High-Pressure Protective Coating Performance
- Maximum working pressure of 6,750 psi (465 bar).
- Maximum flow rate of 5.7 L/min (1.5 GPM).
- Designed for protective coatings including epoxy, silicone, polyurethane and vapour barriers.
- Suitable for spraying 100% solids coatings and other high-viscosity materials.
Precision Pressure Control
- Maintains consistent spray pressure for superior coating quality.
- Accurate pressure adjustment for demanding applications.
- Operating pressure range from 50 to 6,750 psi.
Endurance Pump with ProConnect
- Built to withstand the toughest high-pressure coating applications.
- Oversized fluid passages improve material flow.
- ProConnect system enables fast, tool-free pump replacement.
- Keeps crews spraying with minimal downtime.
TurboClean Flush System
- Cleans up to three times faster while using less flushing fluid.
- Reduces cleaning time between jobs.
- Improves productivity and helps maximise daily output.
WatchDog Pump Protection
- Automatically shuts the pump off when material runs out.
- Protects the pump from costly dry-running damage.
Designed for Maximum Productivity
- Lighter than comparable petrol-powered sprayers.
- No fuel required for operation.
- Easy to transport around the jobsite.
- Ideal for commercial, industrial and protective coating projects.
Additional Features
- Maximum tip size: 0.041".
- Hi-Boy cart for improved mobility.
- Suitable for paints, primers, epoxy, polyurethane, silicone, vapour barriers and 100% solids coatings.
- Minimum generator requirement: 5,000W.
Unit Ships Complete with
- Mark HP XT Standard Electric Airless Sprayer Complete (UK Part No. 18H415).
- High-pressure hose.
- Airless spray gun.
- RAC X Tip Guard.
- Spray tip.
- Suction system.
- Pump lubricant.
- Operator's manual.
