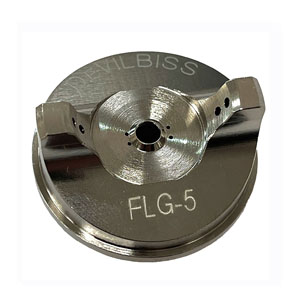

Air Caps for DeVilbiss FLG-5 Spray Guns

Air Caps for DeVilbiss FLG-5 Spray Guns

Manufacturer:
Other
Product ID:
DFLG-0001-x
Brochure:
27.44 (22.87 ex VAT)

spacer
There are two air caps available for the FLG-5 Trans-Tech air spray gun:

Model Ref DFLG-0001-5
This air cap is used with the gravity feed and the suction feed gun versions and is compatible with the 1.4mm, 1.8mm and 2.0mm fluid tips.
Pattern Size: 280mm x 70mm
Pattern Shape: Short Ellipse
Viscosity Range: 15 to 30 seconds, Din 4
Max. Air Consumption: 370l/min @ 4 bar
Typical Air Consumption: 220l/min @ 2 bar
Atomisation: Trans-Tech (Compliant)

Model Ref DFLG-0001-622
This air cap is only used with the pressure feed version of the gun and can only be used with a 1.4mm Fluid Tip.
Pattern Size: 265mm x 60mm
Pattern Shape: Long Ellipse
Viscosity Range: 15 to 30 seconds, Din 4
Max. Air Consumption: 410l/min @ 4 bar
Typical Air Consumption: 240l/min @ 2 bar
Atomisation: Trans-Tech (Compliant)
