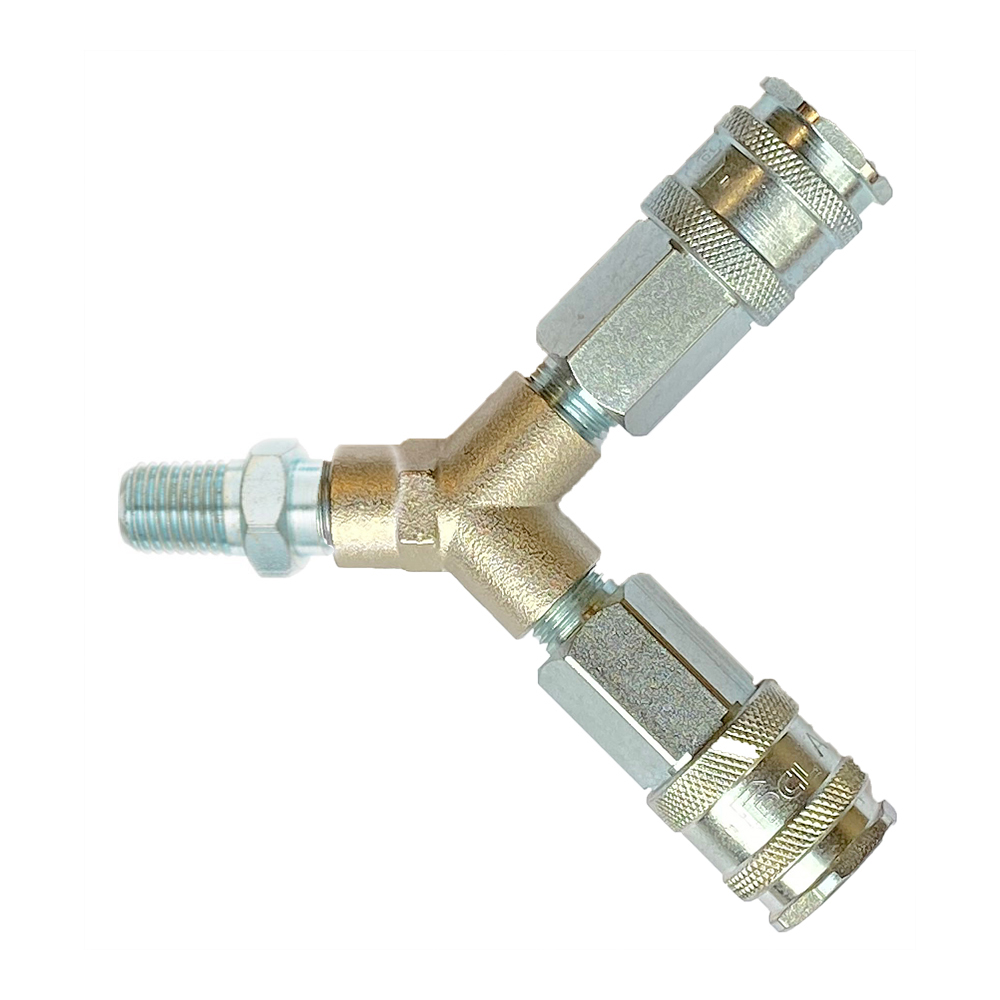

Twin Quick Release Air Outlet

Twin Quick Release Air Outlet

Manufacturer:
Other
Product ID:
SMA666-S25QD
Max. Pressure:
30Bar (440psi)
38.40 (32.00 ex VAT)

spacer
This kit allows you to split a common air supply to two independant operations. It is often used on the outlet of breathing air filtration sets to supply two air fed masks, but can be used for many other purposes.

The quick release couplings are "QD" type , also know as Series 25. A commonly used connection system interchangeably with PCL XF, Rectus 25 & 26, Parker Intercheck 35, Legris 25 & 26, CEJN 320 and Norgren 234/238.

The inlet is has a 3/8" BSPT Male thread, a 1/2" BSPT Bush is also provided to convert the outlet of your regulator/filter system, if required.

Specifications:

Inlet connection:3/8"BSPT (male)
Outlet connection:Series 25 (QD) coupling
Max Working Pressure:30bar (440psi)
