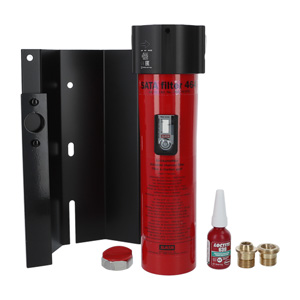

SATA 464 (Add On Kit) Single-Stage Activated Charcoal Filter

SATA 464 (Add On Kit) Single-Stage Activated Charcoal Filter

Manufacturer:
Sata
Product ID:
141473
£603.75 (£503.13 ex VAT)

spacer

Product Description:

To retrofit SATA filter 444 to SATA filter 484.


Product Benefits:

  • Reliably prevents expensive reworking.
  • As three-stage filter (SATA filter 484) suitable for use with water-based paints and ambient air-independent breathing protection systems.
  • Inexpensive and economical.
  • Robust metal housing, easily suitable for temperatures up to 120°C.
  • Very high air flow rate: 3,600 Nl/min at 6 bar inlet flow pressure.
  • Available with outgoing module or for line installation.

Complete With:

  • Activated Charcoal Filter.

Technical Information:

Max. inlet air pressure:217.6 psi, 15 bar
Max. air outlet pressure:145 psi, 10 bar
Number of filter stages:1
Max. airflow:3600 Nl/min
Max. ambient temperature:+60 - +120 °C
Exchange interval first filter stage:6 Months
Exchange interval second filter stage:6 Months
Exchange interval third filter stage:3 Months
