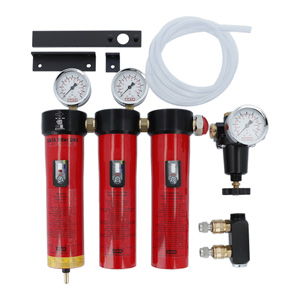

SATA 284 Triple-Stage Filter, Pressure Regulator and Outlet Module

SATA 284 Triple-Stage Filter, Pressure Regulator and Outlet Module

Manufacturer:
Sata
Product ID:
141218
974.40 (812.00 ex VAT)

spacer

Product Description:

Economical combi fine filter unit for highest air quality requirements in paint application as well as for air-ventilated breathing systems. For installation in spray booths, prep decks and other workshop areas.


Product Benefits:

  • Excellent compressed air quality - removes oil, water and particles.
  • User-friendly and easy to maintain.
  • Activated charcoal cartridge (third filter stage) removes oil vapours from the breathing air.
  • 2,000 Nl/min air flow - sufficient air volume to supply two spray guns simultaneously with both clean spraying air and breathing air.
  • Air inlet: G 1/2" female thread; Air outlet: 1/4" male thread.

Complete With:

  • Sintered Filter.
  • Fine Filter.
  • Activated Charcoal Filter.
  • Pressure Regulator.
  • Outlet Module (2 x air coupling/nipple 9 mm).

Technical Information:

Max. inlet air pressure:145 psi, 10 bar
Max. air outlet pressure:145 psi, 10 bar
Number of filter stages:3
Max. airflow:2000 Nl/min
Max. ambient temperature:+60 - +120 C
Exchange interval first filter stage:6 Months
Exchange interval second filter stage:6 Months
Exchange interval third filter stage:3 Months
