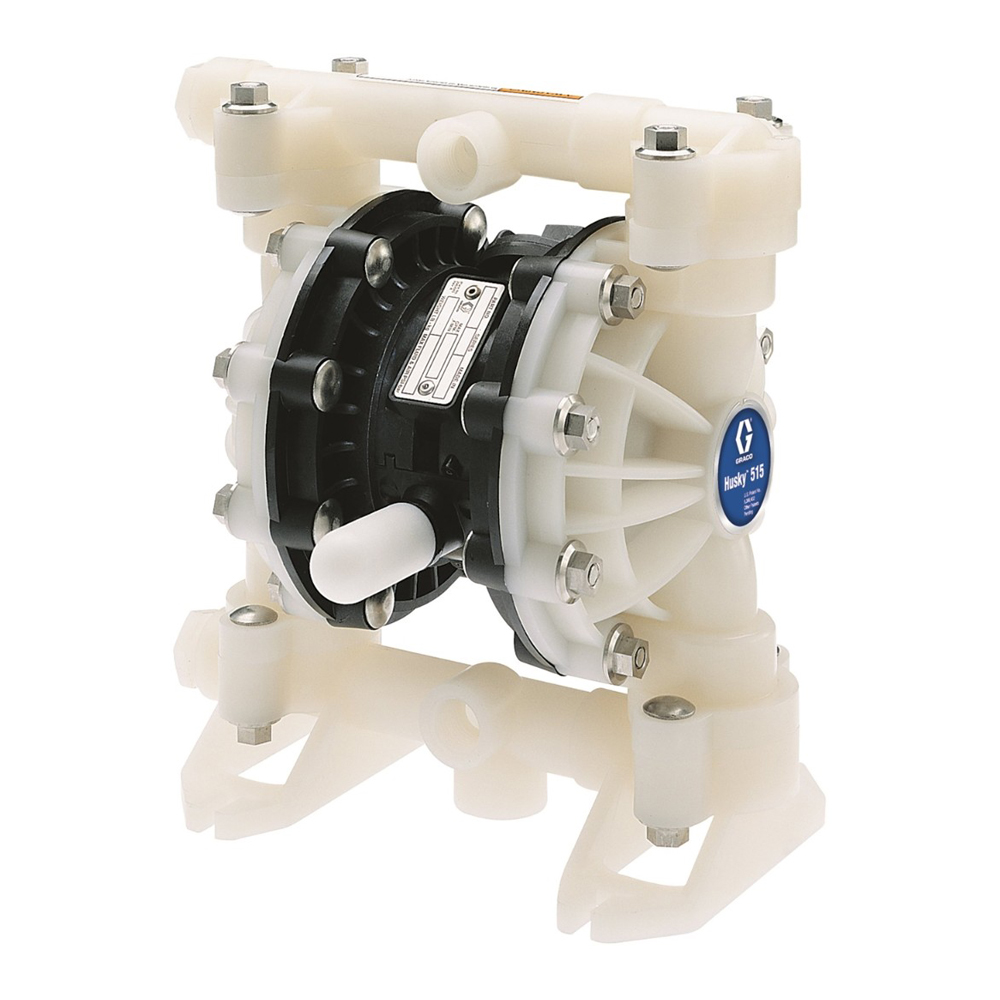

1/2 Inch Positive Displacement Double Diaphragm Pump
The Husky 515 has a 1/2 inch (12.7 mm) connection and is available in polypropylene, acetal and PVDF. The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Features & Benefits of the Husky 515 Double Diaphragm Pump:
- Fully-groundable acetal model.
- Delivery up to 15 gpm (56.7 lpm).
- Easy-to-service air valve and ball checks.
- Reliable air valve for years of dependable performance.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures.
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels.
- Easy-to-service air valve and ball checks.
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa).
- Split manifold option to pump multiple fluids without mixing.
Overview:
Acetal Fluid Section, Polypropylene Standard Air Valve (NPT) Centre Section, Acetal Seats, Buna Balls, Buna Diaphragms, PTFE O-Rings.
