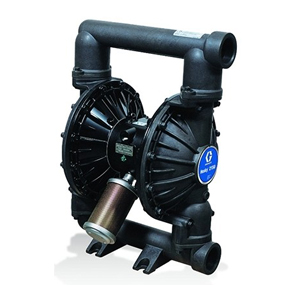

2 Inch Positive Displacement Double Diaphragm Pump
The Husky 2150 has a 2 inch (50.8 mm) connection and is available in polypropylene, aluminum, SST and iron. The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Features & Benefits of the Husky 2150 Double Diaphragm Pump:
- 2 inch (51 mm) ANSI end-porting.
- Fluid flow up to 150 gpm (568 lpm).
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa).
- Lube-free operation.
- Epoxy-coated air section for tough environmental conditions.
- Available in aluminum, 316 stainless steel, ductile iron and polypropylene.
- Overall improved efficiency (up to 40% more efficient).
- Highest fluid flow rate in its class.
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps.
- Expanded material offering to handle endless applications.
- Fewer parts than industry peers, the complete air valve is externally accessible so it can be serviced fast and easy without removing the diaphragm pump.
Overview:
Aluminium Fluid Section, Aluminium Standard Air Valve w/Buna Seals Centre Section, Buna Balls, Buna Diaphragms, n/a O-Rings.
