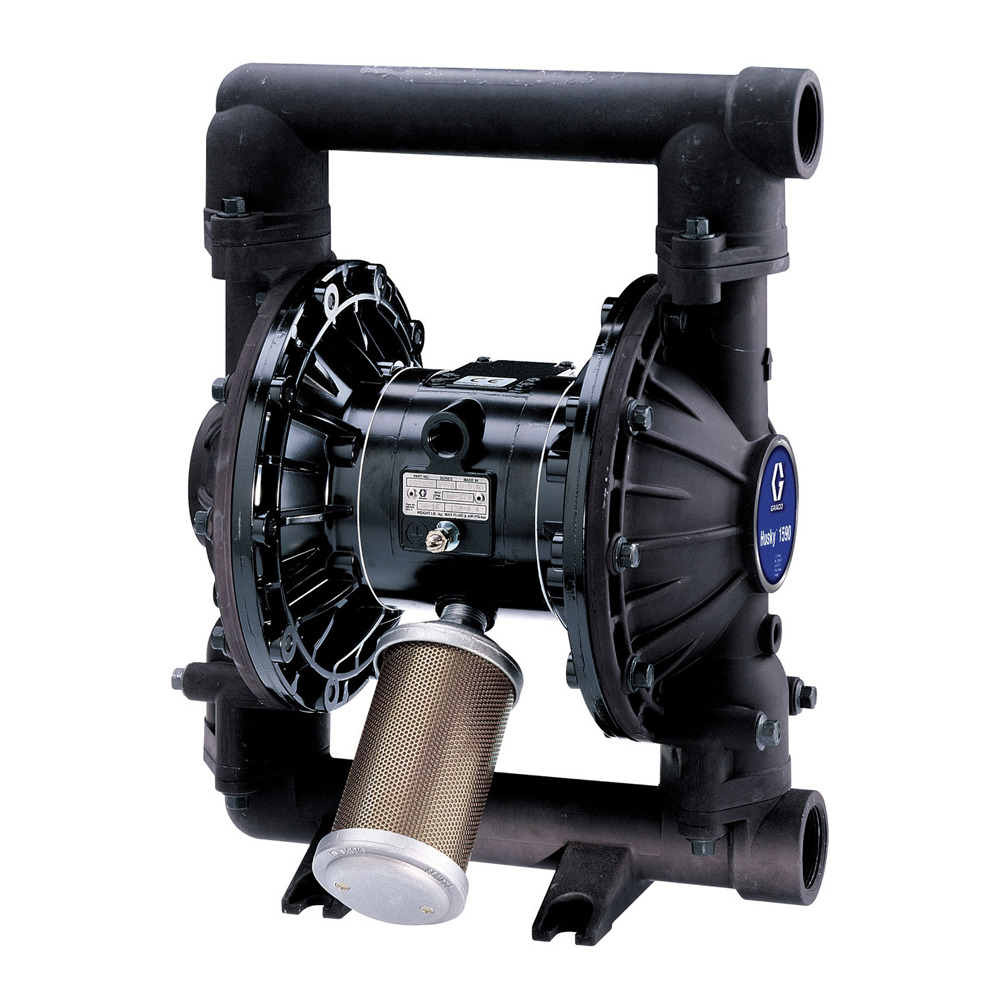

1.5 Inch Positive Displacement Double Diaphragm Pump
The Husky 1590 has a 1.5 inch (38.1 mm) connection and is available in aluminum, stainless steel and polypropylene. The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Features & Benefits of the Husky 1590 Double Diaphragm Pump:
- 1.5 in. (38.1 mm) ANSI end-porting.
- High flow - 100 gpm (378 lpm) in a compact, portable size.
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa).
- Lube-free operation.
- Available in polypropylene, aluminum and stainless steel.
- Epoxy-coated air section for tough environmental conditions.
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class.
- Expanded material offering to handle endless applications.
- Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump.
- Offered in ATEX configuration.
Overview:
Aluminium Fluid Section, Aluminium Standard Air Valve w/Buna Seals Centre Section, TPE Seats, Acetal Balls, TPE Diaphragms, n/a O-Rings.
