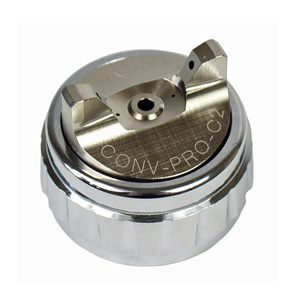

Air Caps for DeVilbiss JGA & GFG HD Spray Guns

There are three air caps available for the JGA HD and GFG HD conventional atomisation air spray guns:

Air Cap Specifications Chart

Air Cap	Fan Width	Air @ 2 Bar	Visc. Din4	Pattern
PROC-120-C1	270mm	220 l/min	15~40	Long Ellipse
PROC-120-C2	270mm	220 l/min	15~30	Short Ellipse
PROC-120-C3	360mm	325 l/min	15~40	Tapered Ends

Refer to the table below to ensure compatibility with your size of fluid tip.

Compatibilty Chart:

Part No.	0.85	1.0	1.2	1.4	1.6	1.8
PROC-120-C1-K	P S	P S	P S	P S G	P S G	P S G
PROC-120-C2-K	P S	P S	P S	P S G	P S G	P S G
PROC-120-C3-K	P S	P S	P S	P S G	P S G	P S G

Key:

G=Gravity, P= Pressure, GP=Pressure Assist, S=Suction

Select the appropriate air cap from the drop down list:
