Painter & Decorator | Electric Airless | Mark V™ Premium

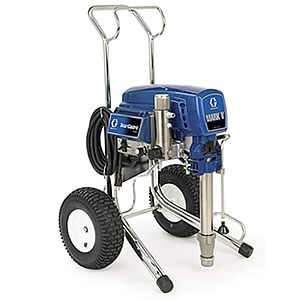

Mark V™ Premium

Electric Airless Sprayer

Manufacturer:	Graco
Product ID:	249906
Max. Tip Size:	0.035" (0.037" with plaster)
Max. Fluid Flow:	4.3 l/min (up to 5.5 l/min with plaster)
Brochure:	Download Brochure

Note:

Our Graco products are full CE Mark products from Graco Europe, not non-compliant USA imports

Premium Series - with ProConnect™ for Paints, Fire Retardant and Airless Plastering Applications

Professional Advantages

Fast: sprays plasters like paint at the speed of airless
Clean: hardly no projection of material
Simple: cleans quickly and automatically

AutoClean™ 2 + Heavy Duty Prime Valve

Now fully automated. Connect your gun and switch the
HD prime valve to the AutoClean position. The system will do the rest: while you start other cleaning activities, the system cleans gun, hose, filters and unit independently!

Endurance™ pump

Graco’s proven Piston Pump. Lowered inlet check for improved material suction without cavitation. Handtight™ inlet tube and pump lower: Clean your valves in minutes without special tools on the job.

TiltBack™ leg

Easy bucket change, cleaning and maintenance.

Motor & SmartControl™ 2.0

The unit’s brain controls the very strong performing brushless DC motor. Save energy - Smart Control makes the motor turn only if pressure is needed. It adjusts the pressure immediately to the tip size and maintains very accurately the stalled pressure. Digital display with pressure rating, litre counter and error coding, all from the push of one button.

ProConnect™

Remove and replace your entire pump lower - on the job - without any tools - in seconds.

Unit ships complete with:

SmartControl™, AutoClean™, ProConnect™, 289605 blue texture gun with HandTite™ RAC X™ guard and HDA527 & HDA531 reversible tips, BlueMax™ II whip hose 1/4" x 0.90 m, BlueMax II hose 3/8" x 15 m, 189018 gun swivel, set of SST balls and seats for paint spraying, TSL™ 0.25 l, Universal hammer tool and Adjustable wrench.

Specifications:

Max. Tip Size:	0.035" (0.037" with plaster)
Max Fluid Flow:	4.3 l/min (up to 5.5 l/min with plaster)
Max. Pressure:	230 bar (3300 PSI)
Weight:	59 kg (130 lbs)
SmartControl™ version:	2.0
Motor type:	DC Brushless TEFC
Motor rating:	1.65 kW (2.2 HP)
Generator requirements:	5 kW (6.7 HP), 5000 W
